Introducing AiOS: the pinnacle of streaming audio integrated amplifiers, offering unparalleled performance and value.
With a robust 75 watts per channel Class AB amplifier and a linear toroidal power supply, AiOS ensures pristine power delivery, prioritizing uncompromising audio quality.
Inspired by the esteemed SA-200.2ES stereo amplifier, AiOS incorporates advanced micro-surface-mounted devices and fully discrete output transistors within a sleek, compact all-aluminum chassis.
Featuring the renowned DMS streaming engine and high-quality preamplifier circuit, AiOS guarantees exceptional sound and convenience in any space.
With AKM DACs, Spotify Connect, TIDAL Connect, Qobuz, Roon Ready, DLNA, Airplay, and more, AiOS offers enhanced versatility for an immersive listening experience.
Plus, AiOS is Roon Ready, providing a complimentary 60-day subscription to Roon with purchase.
Experience MQA technology with AiOS, delivering the sound of the original master recording, denoted by the glowing LED indicating provenance.
Roon seamlessly integrates with AiOS, offering the most engaging way to browse your music library with easy setup and highest reliability.

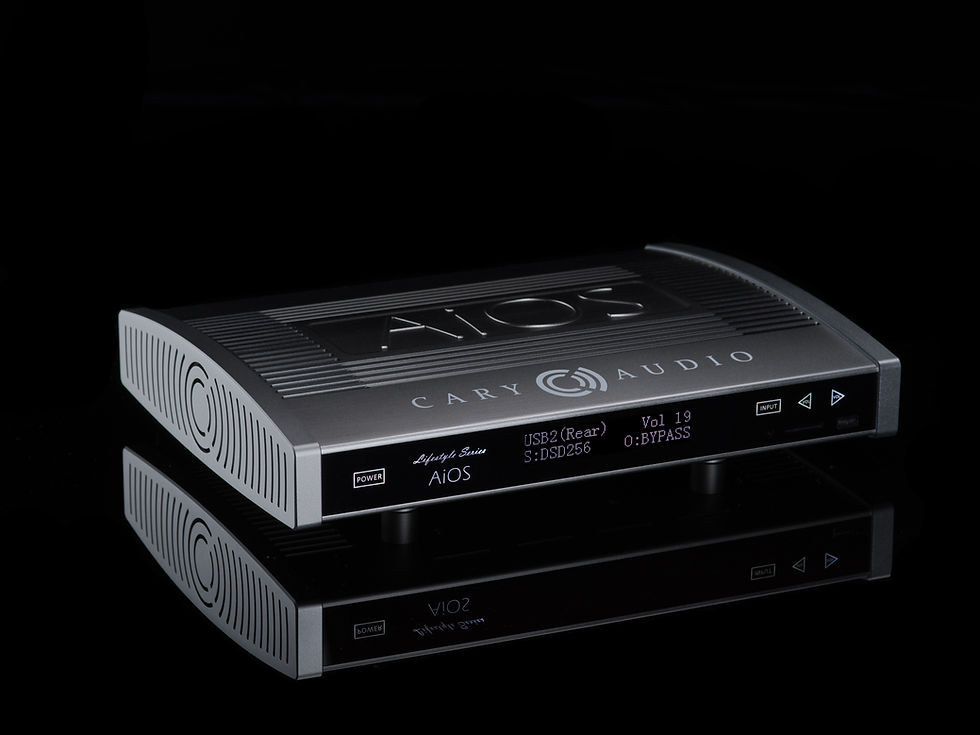

Cary Audio AIOS (All In One System)
Basic Specifications
Power Amplifier
Audio (LPCM)
NETWORK, USB, SD CARD PLAYBACK
SPDIF PLAYBACK; COAXIAL, TOSLINK (LPCM)
Master Clock Jitter:
Below measurable levels
Digital Sampling Rates (Fs):
44.1 kHz to 768 kHz
Digital Filter:
32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters:
1 – 2 channel AK4490EQ
BLUETOOTH:
Qualcomm aptX® decoder and transmitter
Analog Filter:
3rd Order Bessel
Analog SUB Outputs:
Single – Ended RCA
Digital Outputs Coaxial, Toslink operating at Sample Frequency (Fs):
44.1 kHz to 192 kHz, 16 bit to 24 bit
Digital Inputs:
USB-A x 3, SD Card x 1
BLUETOOTH
In & Out x1
Coaxial x1, Toslink x1
Digital Input Sample Rate USB operating at Sample Frequency (Fs):
44.1 kHz to 384 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512.
BLUETOOTH Sample Frequency (Fs):
48 kHz, 16 bit.
Coaxial, Toslink operating at Sample Frequency (Fs):
44.1 kHz to 192 kHz, 16bit to 24 bit
Control Trigger output:
12VDC x1
IR control x1
Communication Ethernet
Wi-Fi 802.11 b/g/n
Power Input Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
Power Consumption:
255 Watts
Weight:
15 lbs.
Dimensions:
3.0″ H x 14.2″ W x 11.0″ D
POWER AMPLIFIER
Analog Input Single-Ended RCA x 3 for Main-In, Line 1, Line 2
3.5mm Stereo Jack x 1
Analog Input Impedance:
10K Ω Unbalanced
Power Amplifier Output:
2 x 75W RMS in 8 Ω from 20Hz to 20KHz
2 x 125W RMS in 4 Ω from 20Hz to 20KHz
Circuit Type Solid State, Power MOSFET Transistor, Class A/B
Frequency Response 10Hz – 50KHz +/- 0.1dB (at 10db below rated output power)
Distortion (SAMPTE-1M) <0.5%
S/N Ratio >100dB, “A” Weighted
Protections Full short circuit, thermal, Ultrasonic, RF Signal muting & Current limiter.
